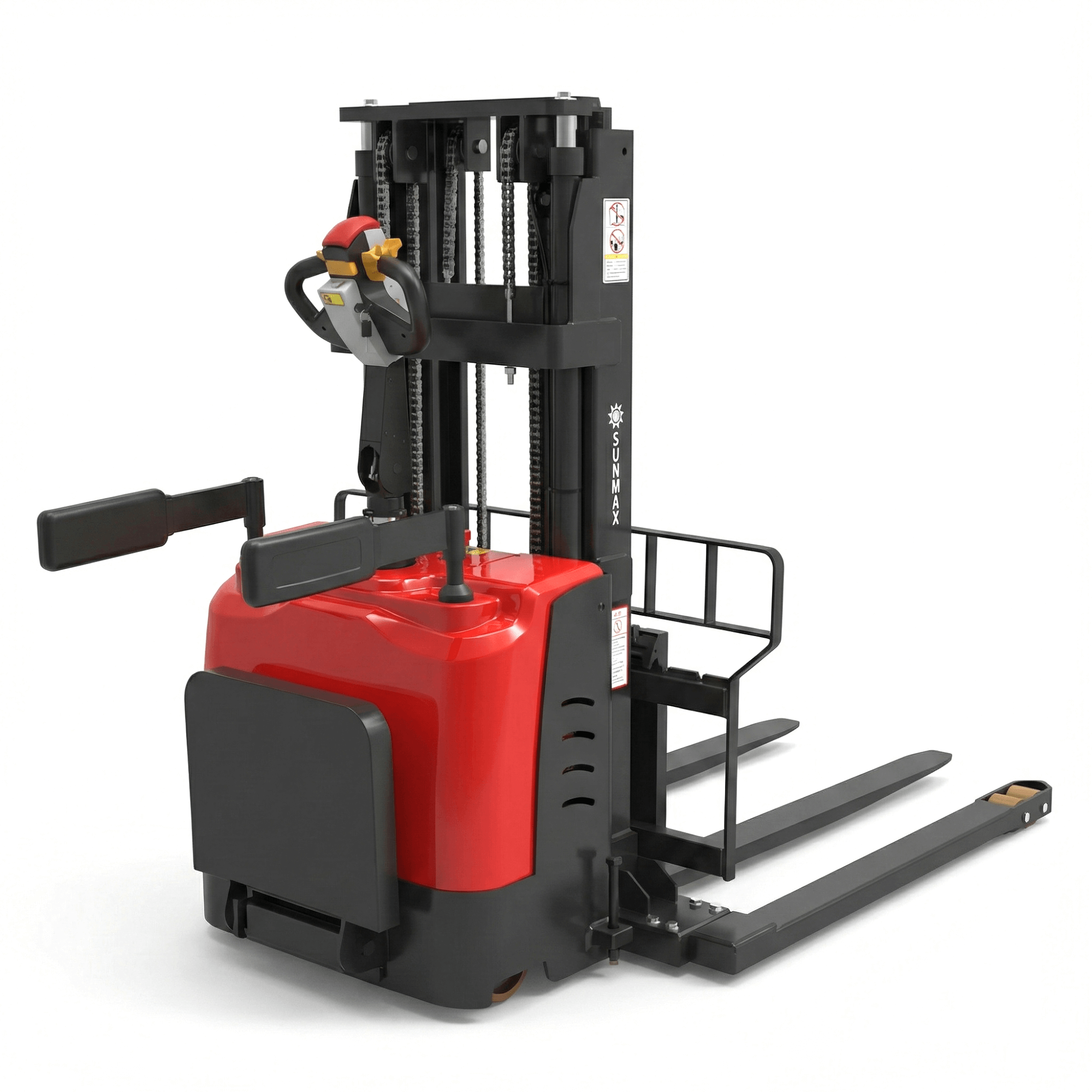

PS3300FEAS-3M Full-Electric Straddle Pallet Stacker – 3,300 lb Capacity, 118" Lift, Adjustable Legs

• Free freight shipping to 48 contiguous states
• Deliver in 3-8 business days
• 2 year warranty

Lift, stack, and transport pallets safely up to 3 meters — without a forklift.

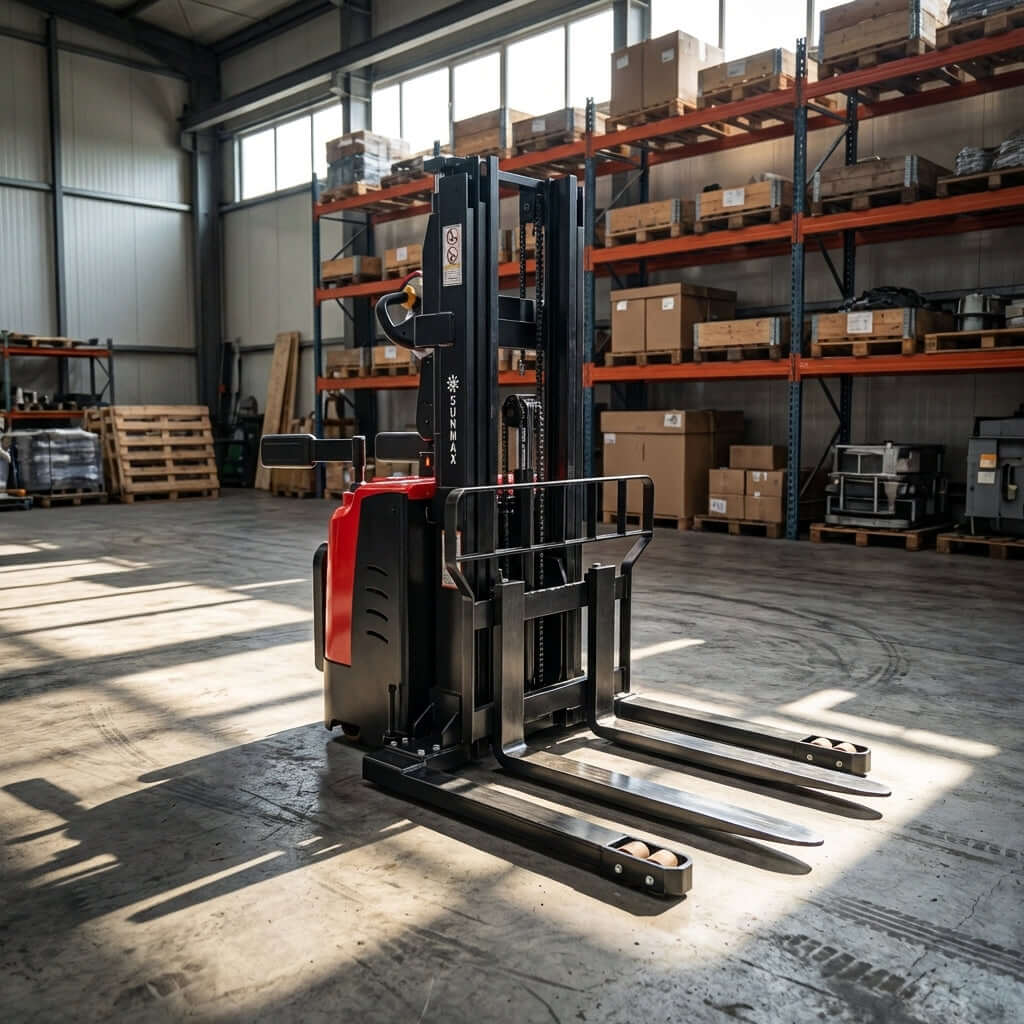

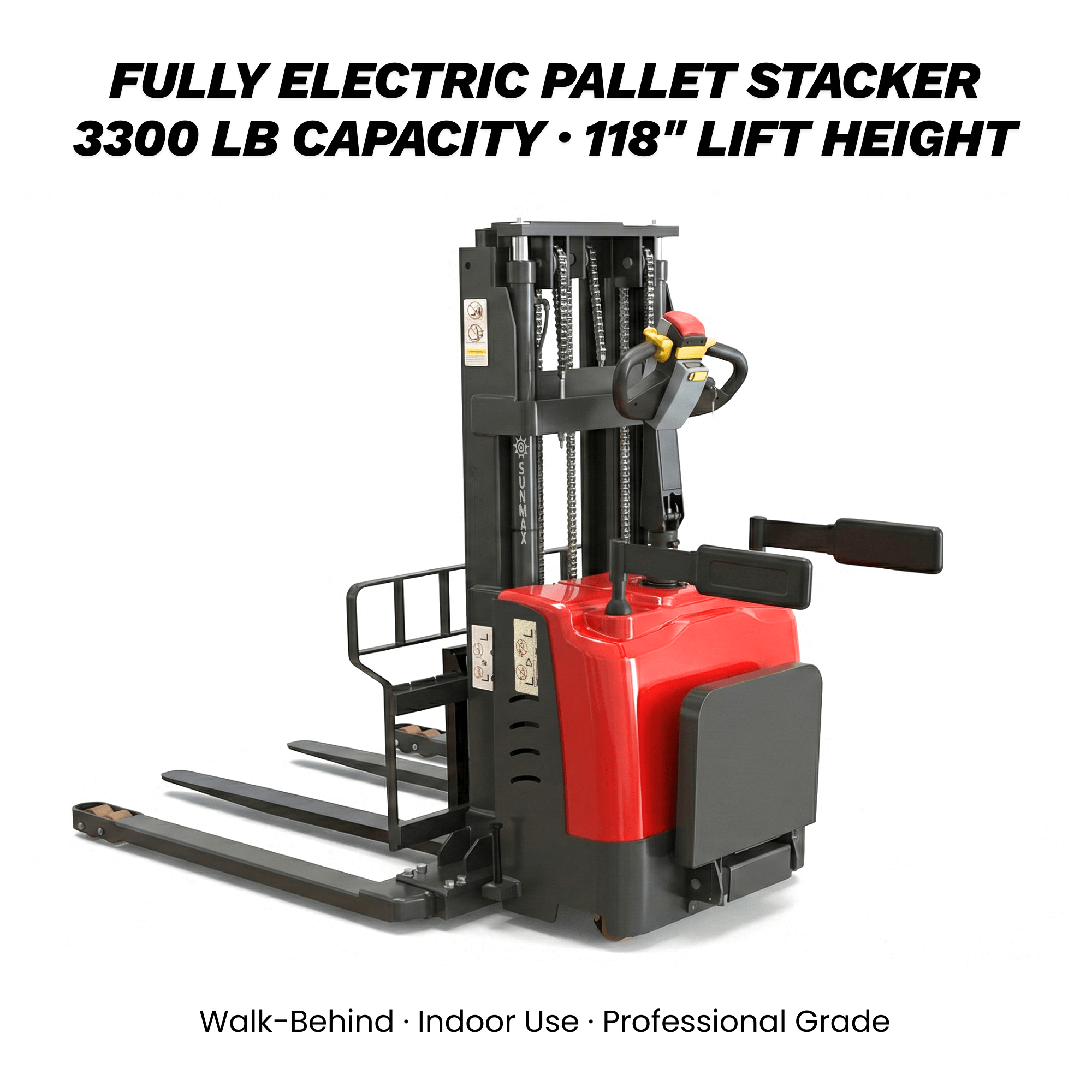

The SUNMAX PS3300FEAS-3M is a fully electric walk-behind pallet stacker with adjustable straddle legs, designed for indoor warehouses, manufacturing plants, and distribution facilities that require efficient vertical material handling in tight spaces.

Key Benefits

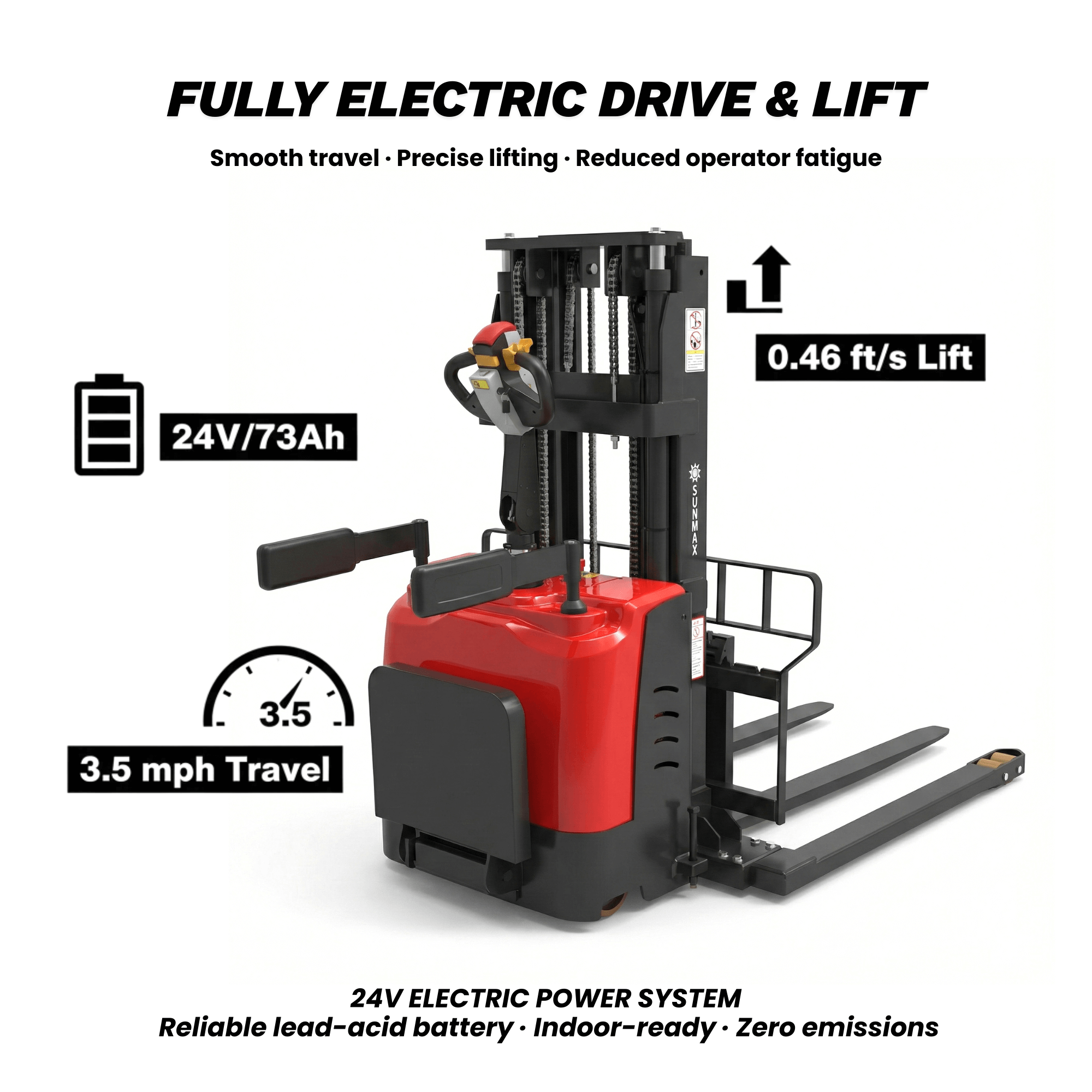

✅ Fully Electric Operation

Electric drive and electric lift reduce operator fatigue and improve productivity compared to manual or semi-electric stackers.

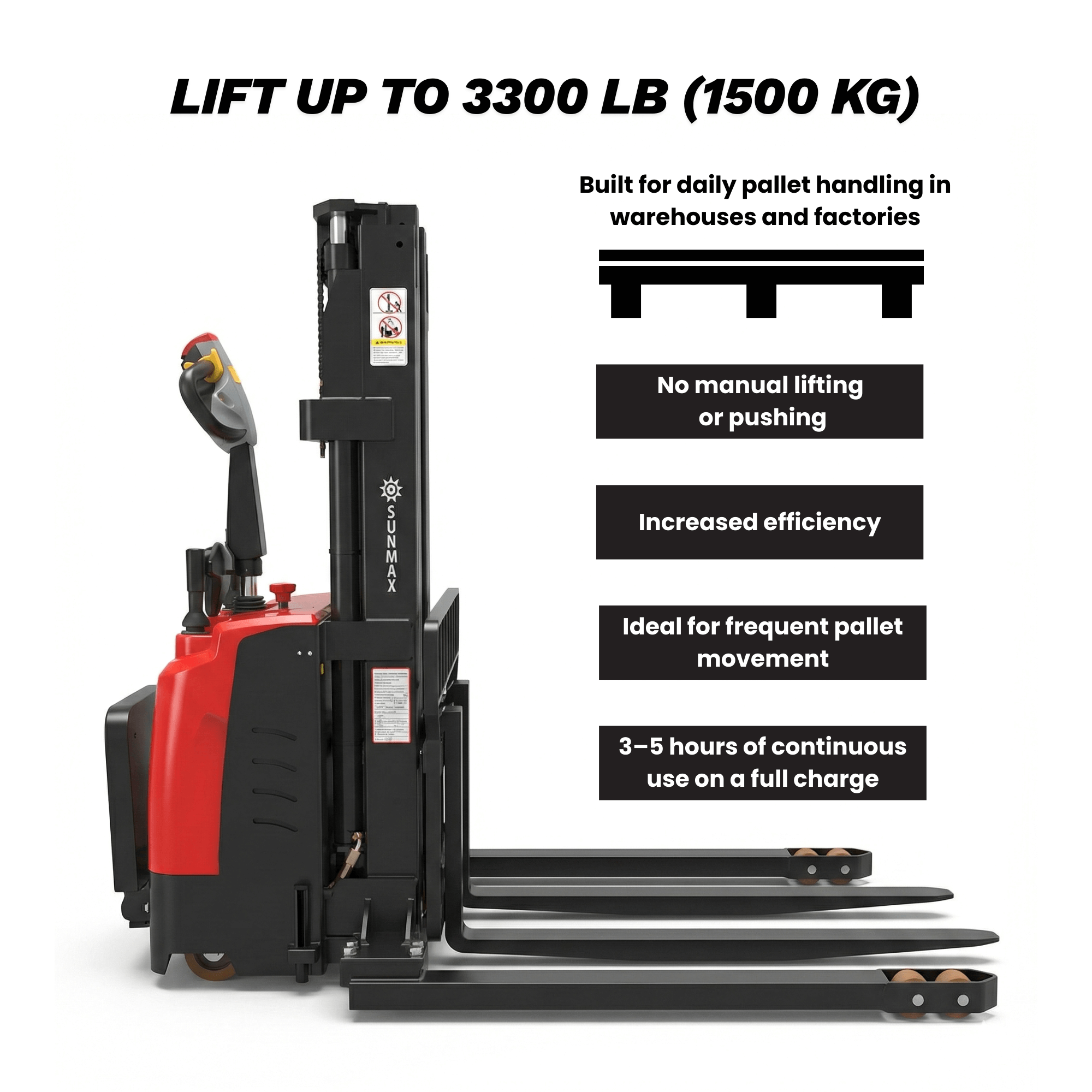

✅ 3300 lb (1500 kg) Load Capacity

Handles standard pallets, heavy cartons, and industrial loads with confidence.

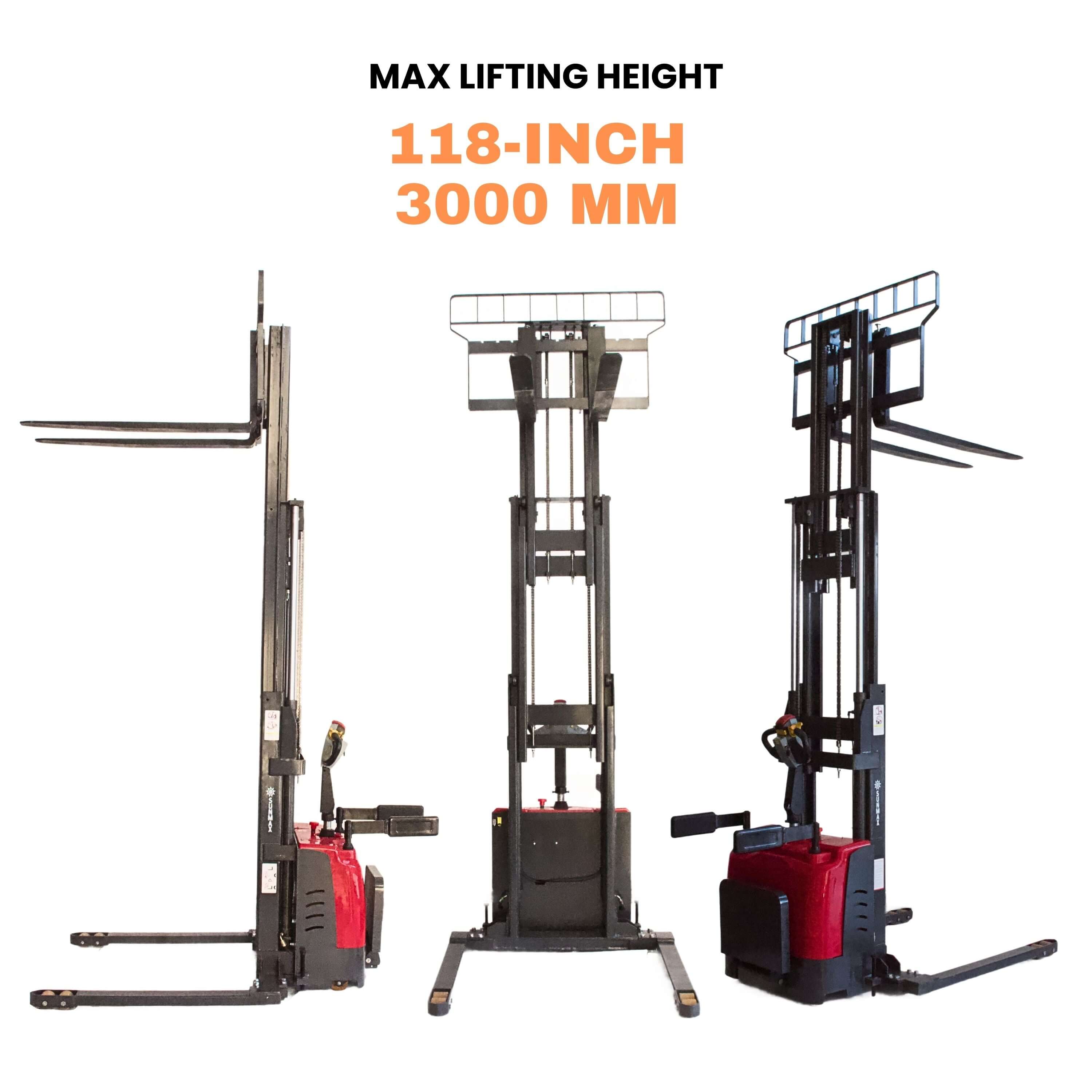

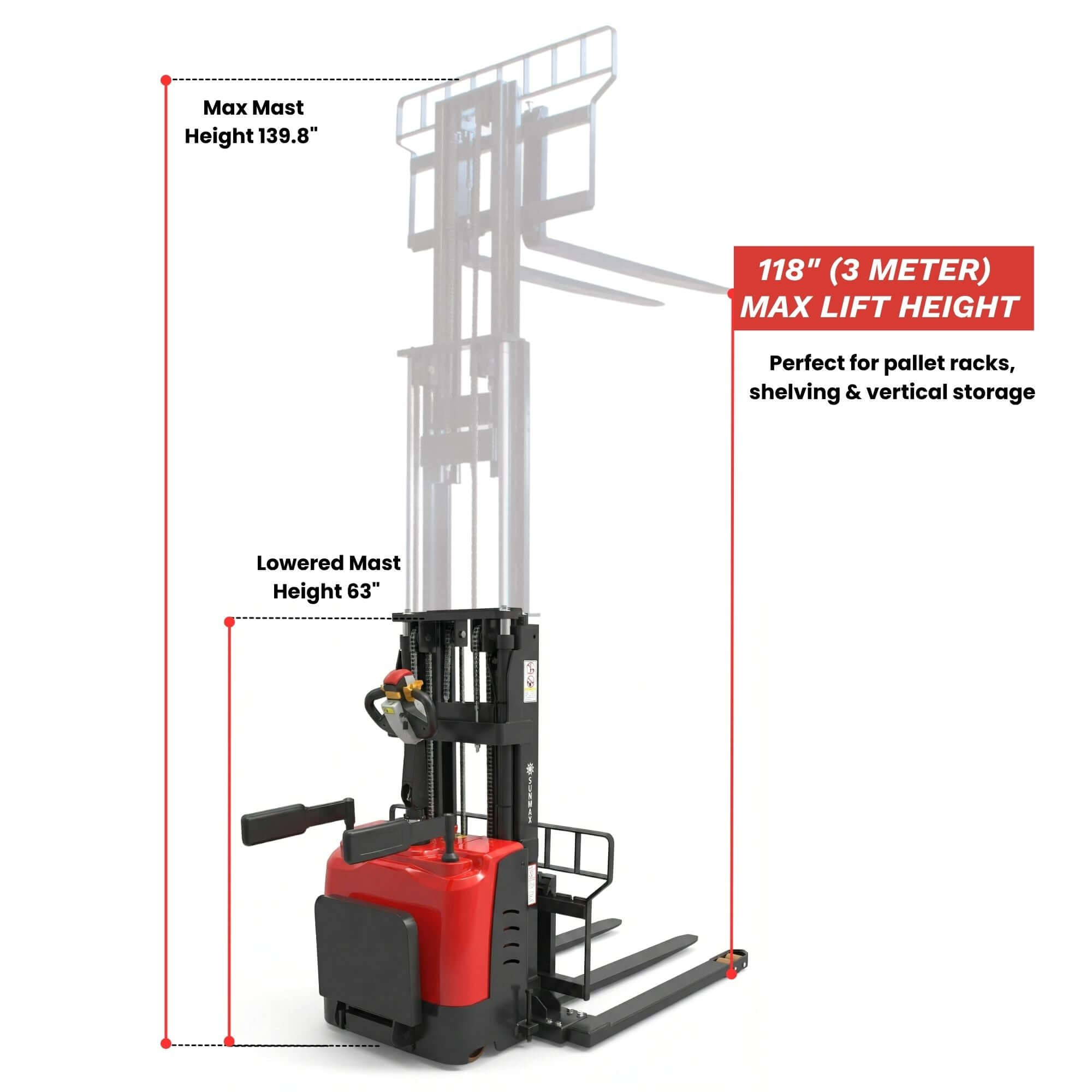

✅ 118" (3 m) Lift Height

Ideal for pallet racking, shelving, and vertical storage optimization.

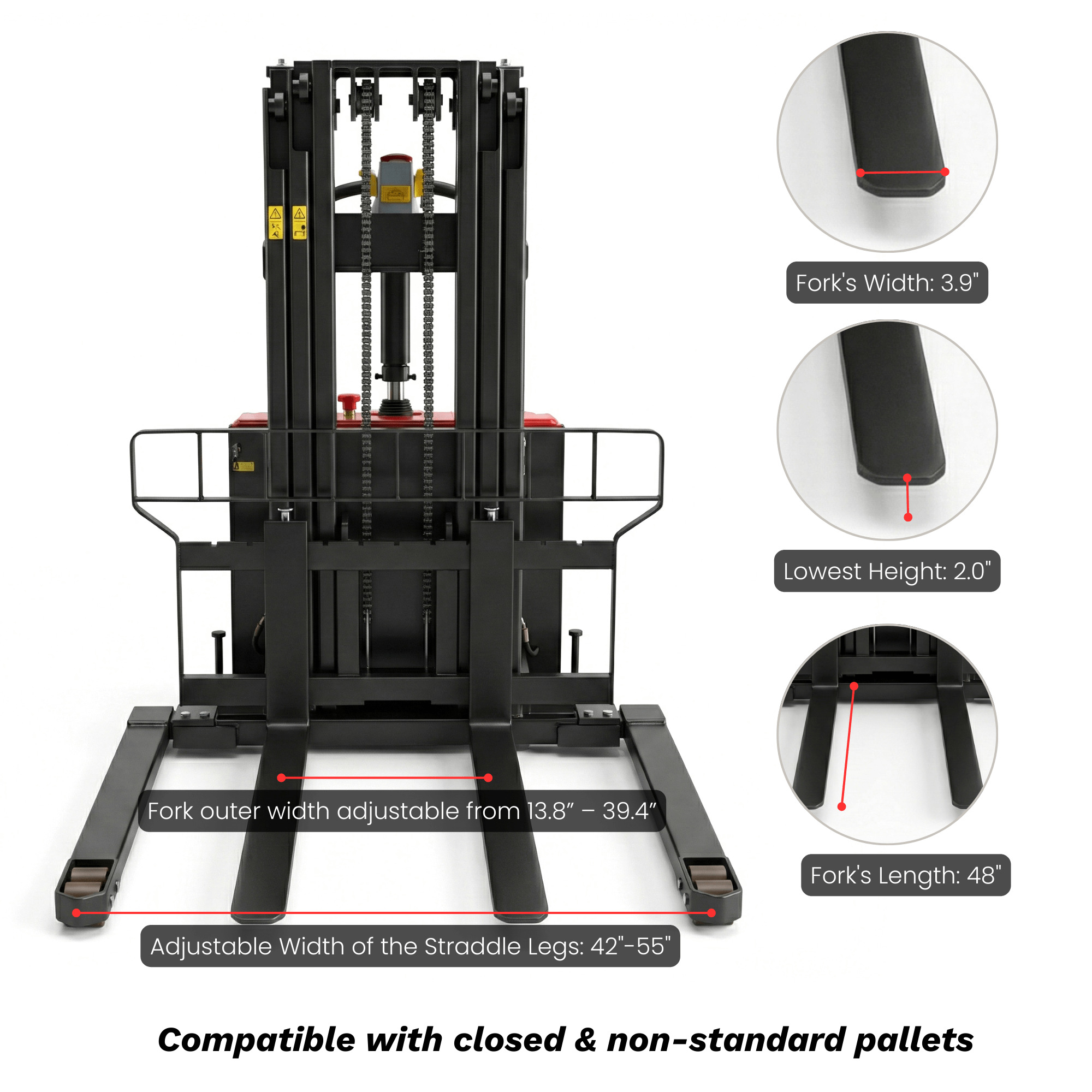

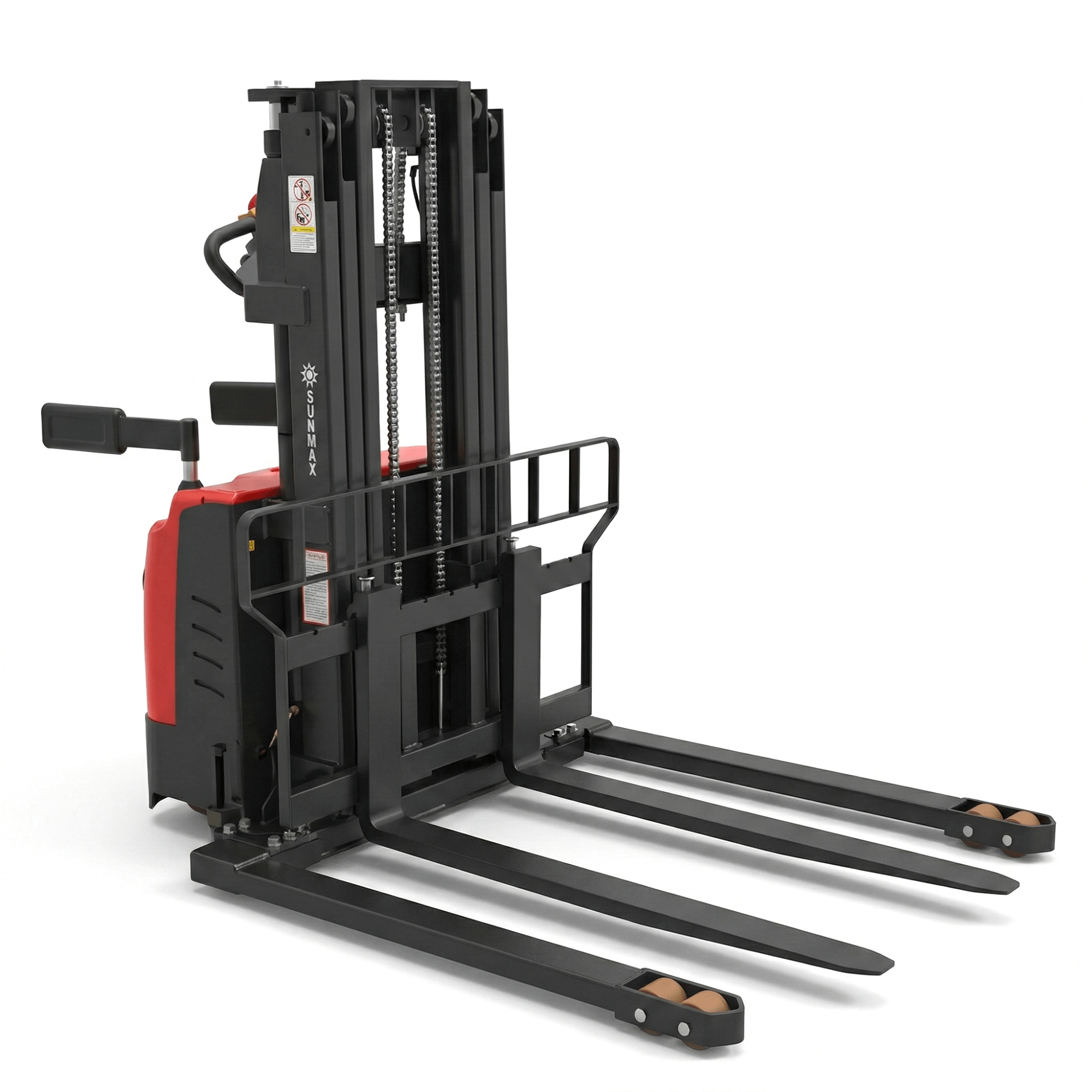

✅ Adjustable Straddle Legs

Fork outer width adjustable from 13.8" to 39.4", compatible with closed pallets, oversized pallets, and non-standard pallet designs.

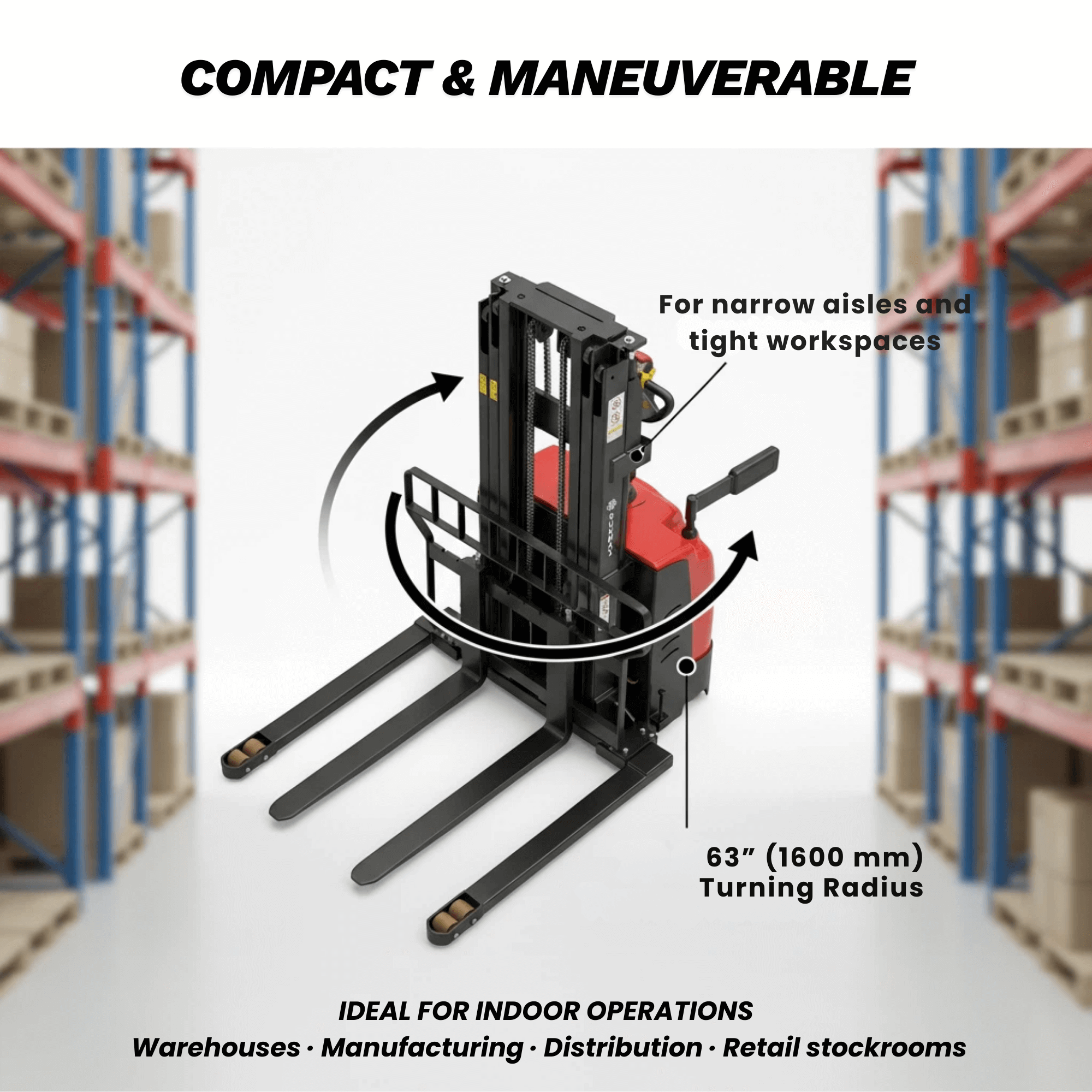

✅ Compact & Maneuverable

63" turning radius allows operation in narrow aisles and confined warehouse spaces where forklifts are impractical.

Applications

• Warehouses & distribution centers
• Manufacturing & assembly plants
• Retail stockrooms & back-of-house operations
• Packaging & export facilities
• Light-to-medium duty indoor material handling

⚠ Indoor use only. Flat, dry surfaces required.

Specifications

General

• Model: PS3300FEAS-3M
• Drive Type: Fully Electric (Drive + Lift)
• Operation Type: Walk-Behind

Load & Lift

• Rated Capacity: 3307 lbs (1500 kg)
• Load Center: 21.7" (500 mm)
• Max Lift Height: 118.1" (3000 mm)
• Fork Lowered Height: 2.0" (50 mm)

Forks & Legs

• Fork Size: 48" × 3.9" × 1.4"
• Fork Outer Width: Adjustable 13.8" – 39.4"
• Leg Type: Adjustable Straddle Legs

Dimensions & Maneuverability

• Overall Length: 63"
• Body Width: 41.7" – 51.2" (adjustable)
• Turning Radius: 63"
• Aisle Width (800×1200 pallet): 82.7"

Performance

• Travel Speed (No Load / Full Load): 3.1 / 1.9 mph
• Lift Speed (Loaded): 0.41 ft/s
• Gradeability: 5% loaded / 8% unloaded

Power System

• Battery: 24V / 73Ah (Lead-Acid)
• Drive Motor: 1.6 hp (1.2 kW)
• Lift Motor: 3.0 hp (2.2 kW)
• Brake Type: Electromagnetic

Weight

• Machine Weight (with battery): 1748 lbs (793 kg)

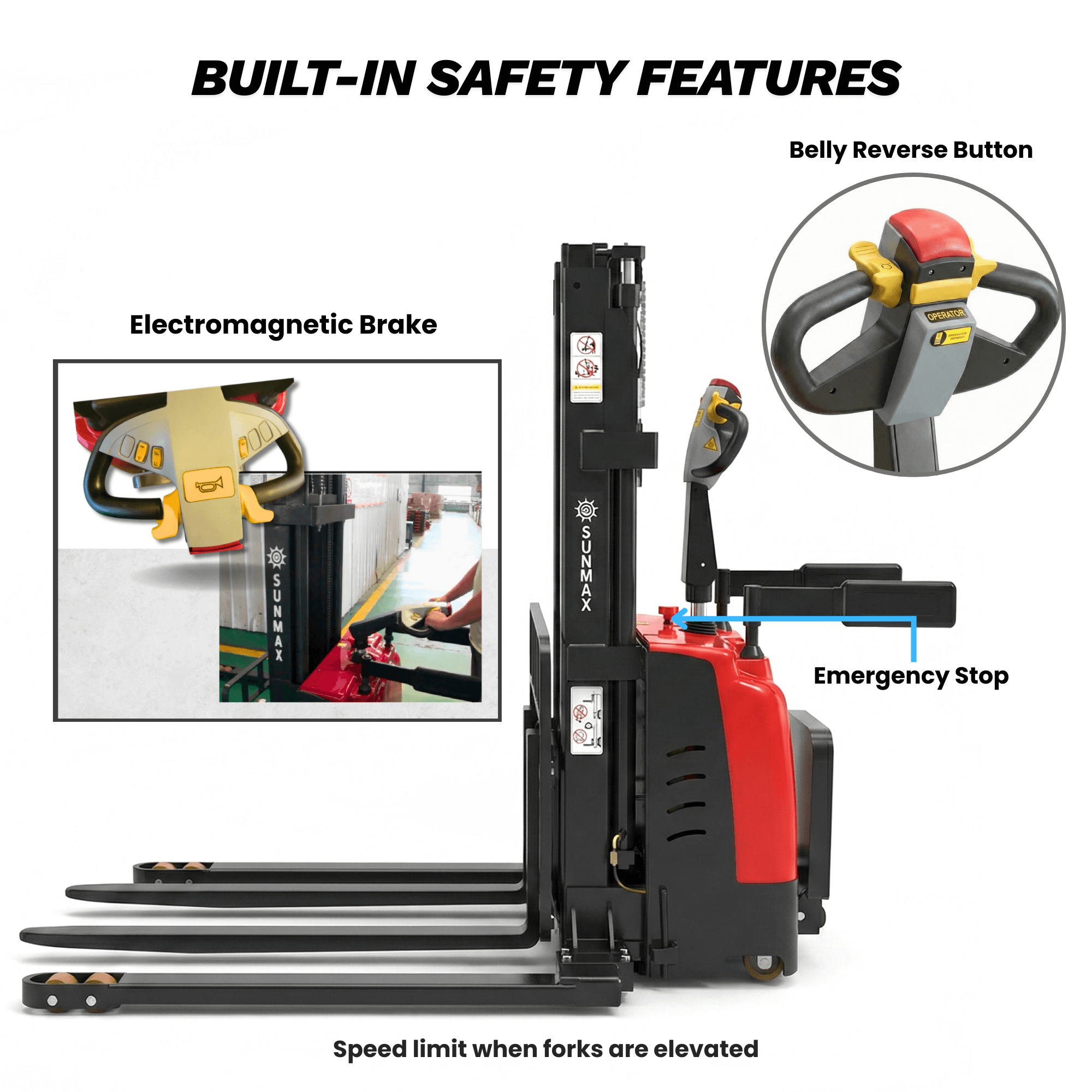

Safety & Control

• Emergency stop switch
• Electromagnetic fail-safe parking brake
• Belly / emergency reverse button
• Speed limit when forks are elevated
• Key switch + password-protected smart handle
• Horn and audible warning system
• Protective mast grille

Designed for trained operators in professional environments.

Important Use Limitations

For safety and compliance, this stacker must NOT be used for:

• Outdoor operation
• Sloped surfaces or ramps
• Loading docks or trailers
• Transporting personnel
• Uneven or wet floors

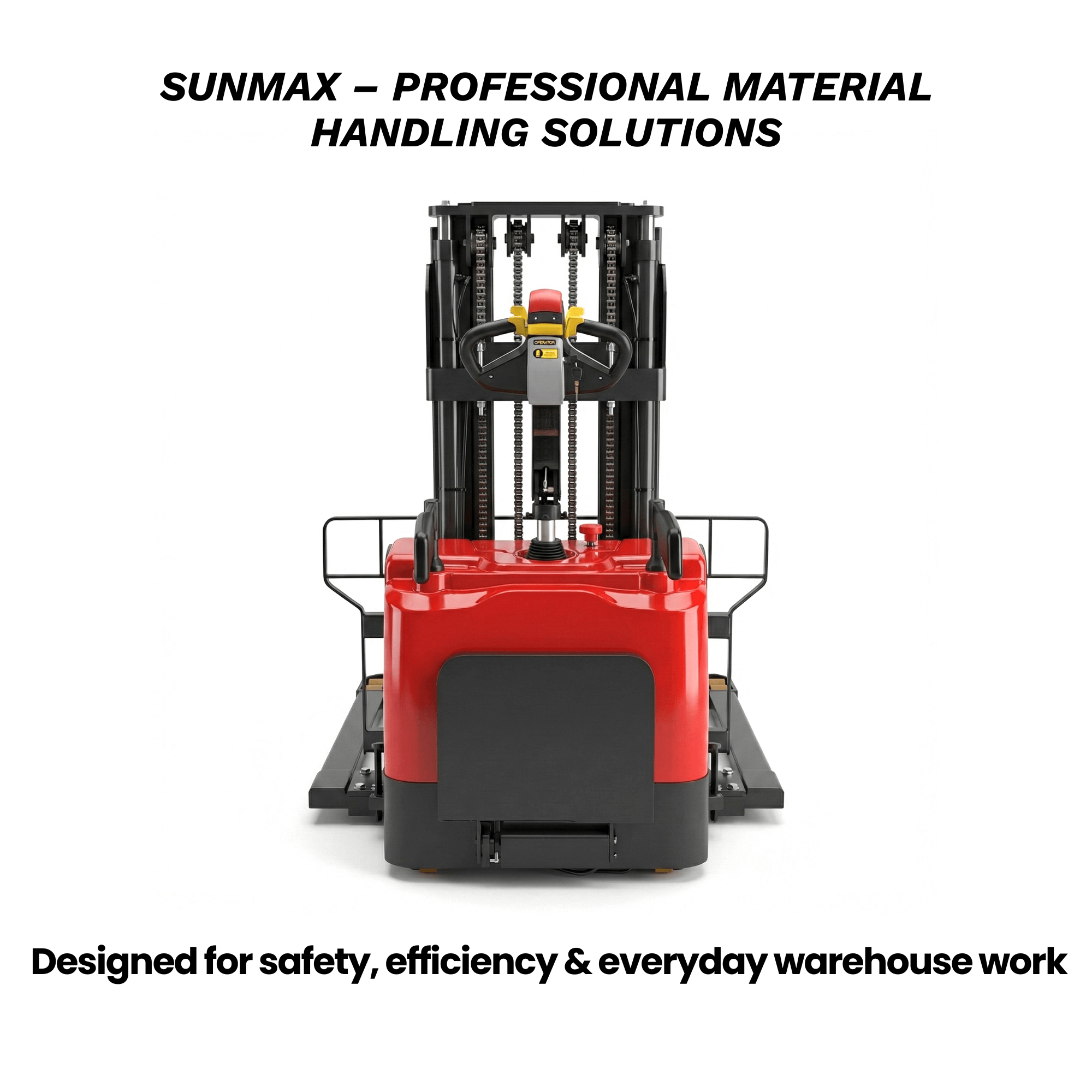

SUNMAX designs professional material-handling equipment focused on safety, efficiency, and cost-effective warehouse operations. The PS3300FEAS-3M offers forklift-like vertical reach in a compact, electric walk-behind format — ideal for businesses seeking productivity without the size or licensing requirements of forklifts.

FAQ

Q: Is this a forklift?
A: No. This is a walk-behind electric pallet stacker designed for indoor stacking and transport, not a ride-on forklift.

Q: Can it handle closed pallets?
A: Yes. The adjustable straddle legs allow compatibility with closed and non-standard pallets.

Q: Does it require a special license?
A: No forklift license is typically required, but operators must be trained.

Q: Can it be used outdoors?
A: No. This machine is designed strictly for indoor use on flat surfaces.

Because this item is heavy and bulky, minor shipping damage can sometimes be unavoidable; please contact us and we will send free replacement parts as needed.

Optimize your warehouse stacking — order the SUNMAX PS3300FEAS-3M today. For bulk pricing, replacement parts, or compatibility questions, contact our sales team.
